Metal Standalone Access Control Set

Metal Standalone Access Control Set

Features:

Waterproof Degree: IP68

Metal structure design, anti-vandal

Digital backlit keyboard

All-in-one, WG26 output/input

User capacity: 2000 card user card, 2000 user password

Three way to open the door, card, password, card + password

The doorbell button and interface: buttons and isolation circuit,

Connect to any external bell

Technical parameters：

Card type：EM

Waterproof degree ：IP68

Environment Humidity：10%～90%

Lock output：≤3A

Working voltage： DC12V±10％

Static electricity：≤30mA

Alarm output：≤20A

Output short circuit protection time：≤100μS

Card read distance：5～8cm

Ambient temperature：-45℃～60℃

Door Opening Time: 0～99s(Adjustable)

Dimension：120 x 80 x 25mm

Metal RFID Card Reader

Descriptions:

Material：Zinc alloy case

Low Power Consumption: Idle current≦30mA

Output Format: WG26

Technical parameters：

Card type：EM

Waterproof degree: IP68

Environment Humidity：10%～90%

Ambient temperature：-45℃～60℃

Working voltage ：DC12V±10％

Static electricity：≤30mA

Card read distance：3～6cm

Dimension：120 x 56 x 18mm

Stainless Steel Panel Door Release Button

Features:

Design with no Mechanical Bolt

Stainless steel Panel with Elegant Style

Tested to 500000 Cycles

Three Contact Output,Suitable for all kinds of the Locks

The Best Choice of Access Control

Specifications:

Dimensions: 88L x 88W x 20H(mm)

Standard Structure: Stainless steel Panel, Steel Button

Mechanical Life: 500000 tested

Suitable for Door: Hollow Door

Operating temp: 10～+55℃(14-131F)

Operating Humidity: 0-95% (non- condensing)

Panel Material: Stainless steel Panel, Wire Drawing Finished

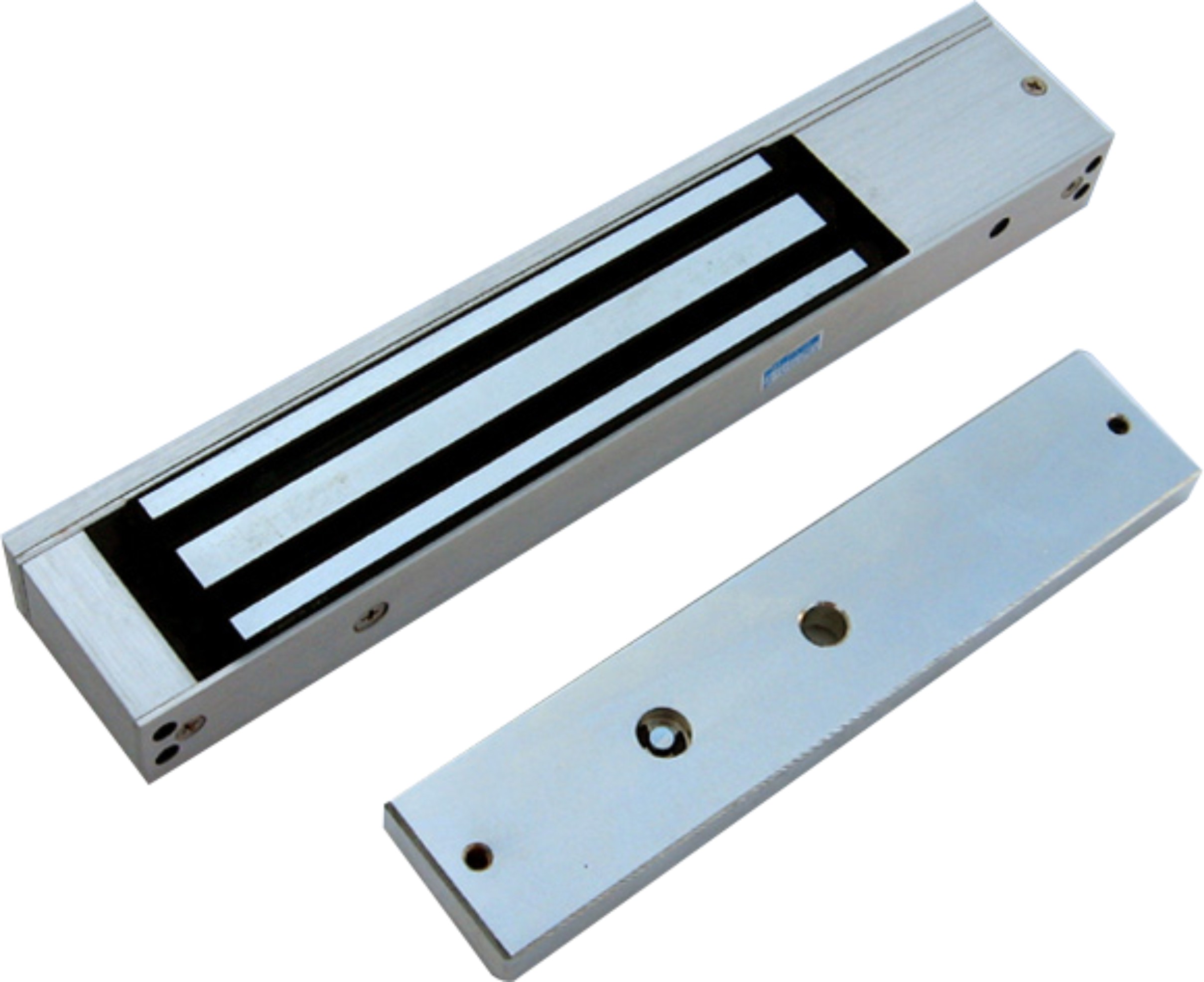

Magnetic Lock

Size: 240 x 56 x 29mm

Working Voltage : 12V

Working Current : 400mA

Power Supply:

Power Input ：AC220V/50Hz

Output： 12VDC/3A

Size ：180mm×77mm×77mm

Use Exit Button, press to open the lock directly

With delay control circuit, lock open time can be in 0-10s.
